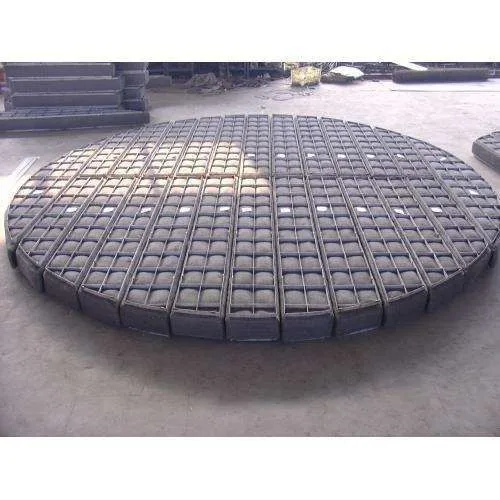

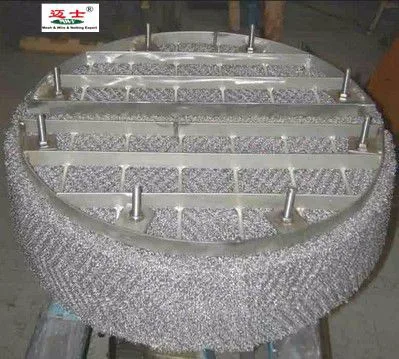

Wire mesh mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.When vapor and entrained liquid droplets pass through a demister , the vapor moves freely through the mesh pad but the liquid droplets cann't, due to their greater inertia, cannot make the necessary sharp turns and as a result thrown into contact with the wire surfaces and briefly held there. As more droplets enter the pad and collect on the wires, they grow in size, run down the wire to the bottom surface of the mesh separator and fall from the unit. Overhead vapor is now free of entrained liqui

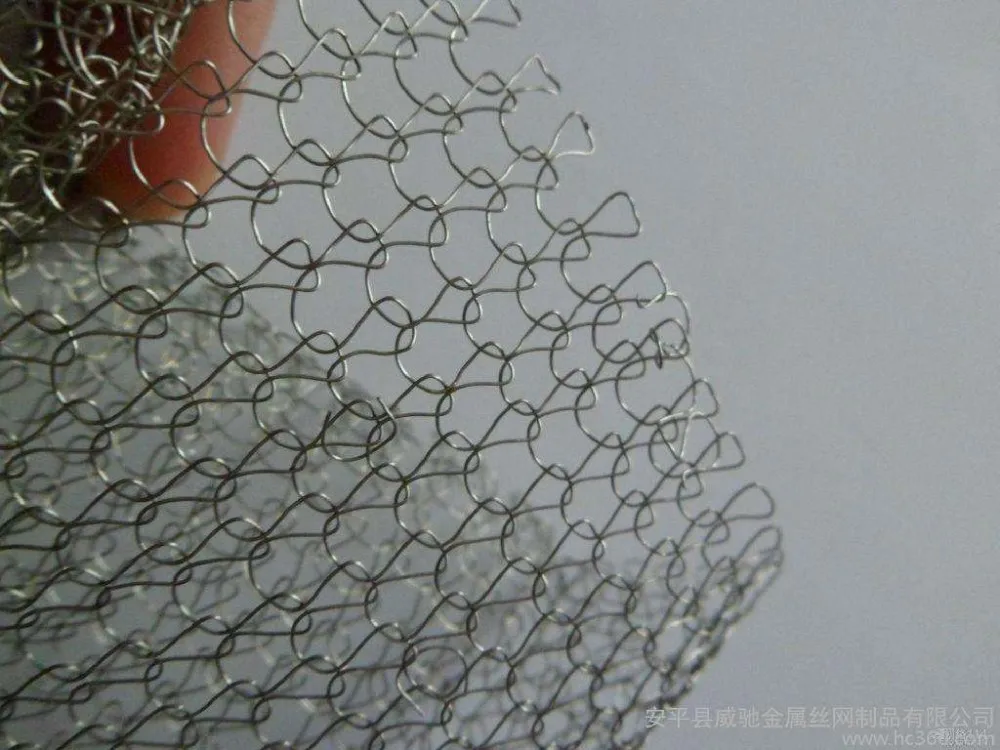

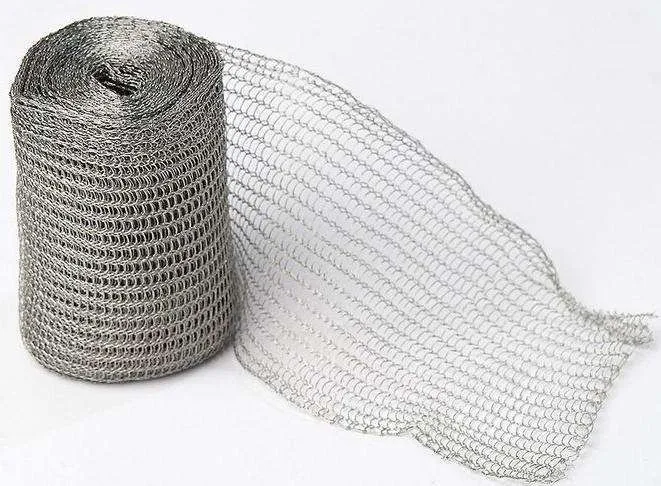

Mesh and grids may be made from most metals and plastics i.e. SS-304, 304L, 316, 316L, 430, Monel, Nickel, Copper, P.T.F.E. (Teflon), H.D.P.E., P.P. etc. and other metals, alloys or plastic which can be drawn or extruded.
High removal efficiency Negligible pressure drop, less than 25mm of water gauge No maintenance or service required No corrosion or temperature limitations Easily installed in existing vessels No limitation on size or shape.
