Steel wire welded wire mesh panel in fence

FOB Reference Price:Get Latest Price
$5.00 - $30.00 / Rolls | 500 Roll/Rolls (Min. Order)
Wire Diameter:
0.6mm 0.8mm 1mm 1.5mm 1.8mm
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire, Iron, low carbon steel wire, stainless steel wire
Type:
Welded Mesh, Welded Mesh
Application:
Protecting Mesh
Weave Style:
Plain Weave
Technique:
Welded Mesh, Plain Woven
Model Number:
M-1505
Brand Name:
MWN
Wire Diameter:
12guage -24guage
Opening Size:
1/4'' to 2**
Size:
2.2X5.8m,2.4X6.0m or customized
Hole shape:
Diamond, Square ,Rectangular
Transport Package:
In Bulk Or Steel Strip
Certification:
ISO9001:2008
Surface treatment:
PVC coated or Galvanized,
Supply Ability
Supply Ability:
1000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details
Wooden pallet or case; export standed packing
Port
Tianjin China(Mainland)
Product Description

Steel wire welded wire mesh panel in fence

Welded Wire Mesh is a metal wire screen that is made up of low carbon steel wire or stainless steel wire.Welded Wire Mesh is available in various sizes and shapes. Welded Wire Mesh is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. Welded Wire Mesh is also used in mines, gardening, machine protection and other decorations.
There are several types of welded wire mesh which can be categorized according to their structure, use, and characteristics.

Specification List of Welded Wire Mesh
Opening
Wire Diameter< BWG>
In inch
In metric unit(mm)
1/4 x 1/4
6.4mm x 6.4mm
22,23,24
3/8 x 3/8
10.6mm x 10.6mm
19,20,21,22
1/2 x 1/2
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8 x 5/8
16mm x 16mm
18,19,20,21,
3/4 x 3/4
19.1mm x 19.1mm
16,17,18,19,20,21
1 x 1/2
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2 x 1-1/2
38mm x 38mm
14,15,16,17,18,19
1 x 2
25.4mm x 50.8mm
14,15,16
2 x 2
50.8mm x 50.8mm
12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
Imperial Size
Metric Equivalent
Weight Imperial
Weight Metric
6x6 W1.4/W1.4
152x152 MW9.1/MW9.1
20 lb/100 sf
0.98 kg/m2
6x6 W2.1/W2.1
152x152 MW13.1/MW13.1
30 lb/100 sf
1.47 kg/m2
6x6 W2.9/W2.9
152x152 MW18.7/MW18.7
41 lb/100 sf
1.99 kg/m2
6x6 W4.0/W4.0
152x152 MW25.8/MW25.8
56 lb/100 sf
2.73 kg/m2
6x6 W5.4/W5.4
152x152 MW34.9/MW34.9
76 lb/100 sf
3.72 kg/m2
4x4 W1.4/W1.4
102x102 MW9.1/MW9.1
30 lb/100 sf
1.46 kg/m2
4x4 W2.1/W2.1
102x102 MW13.3/MW13.3
43 lb/100 sf
2.40 kg/m2
4x4 W2.9/W2.9
102x102 MW18.7/MW18.7
61 lb/100 sf
2.96 kg/m2
4x4 W4.0/W4.0
102x102 MW25.8/MW25.8
83 lb/100 sf
4.06 kg/m2
4x4 W5.4/W5.4
102x102 MW34.9/MW34.9
119 lb/100 sf
5.82 kg/m2
Detailed Information

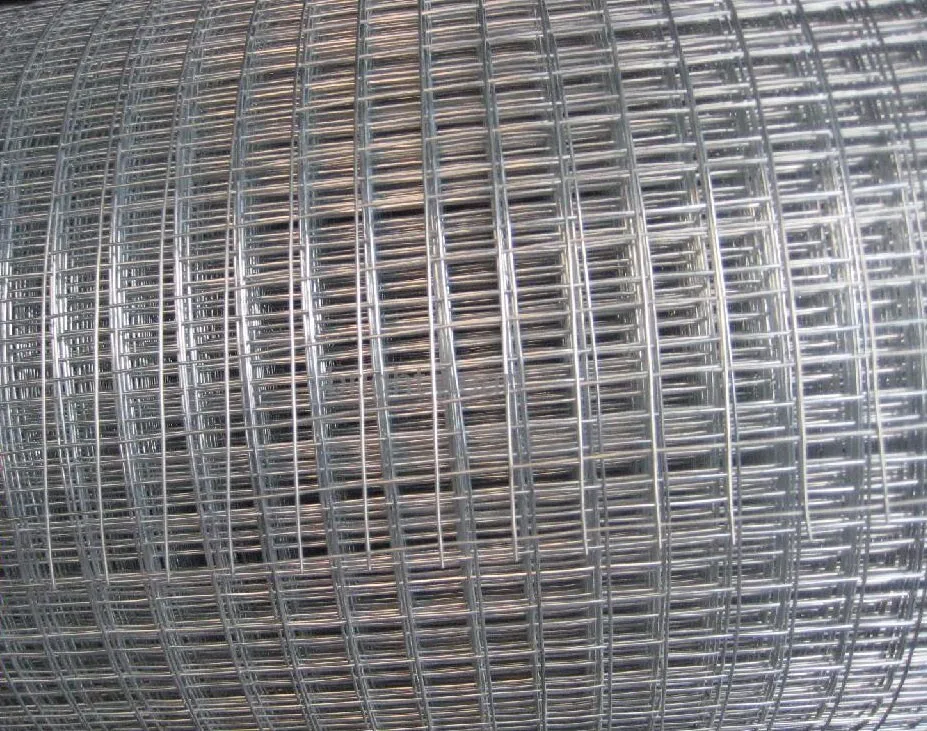

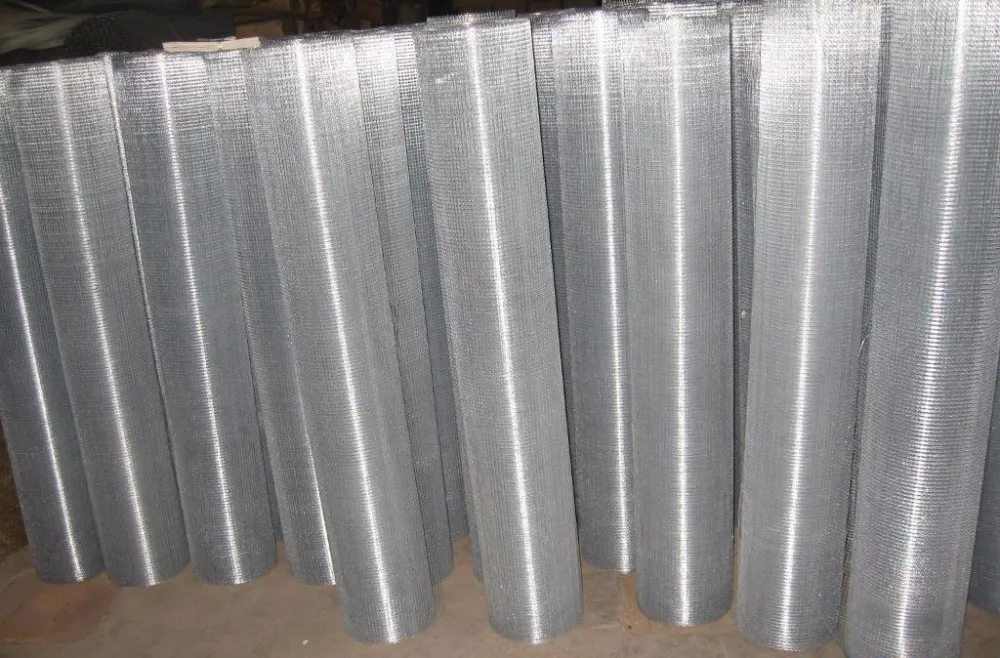

Electro galvanized welded wire mesh with square opening
This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.

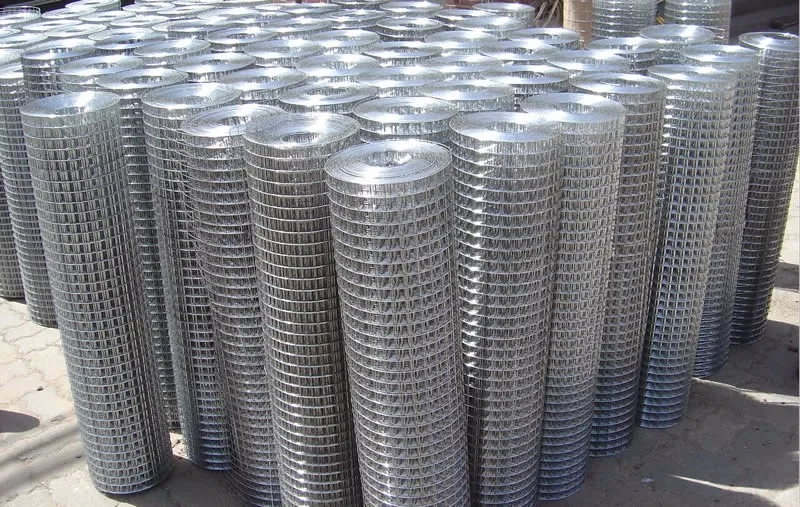

Hot dipped galvanized welded
This type of mesh wire is generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.

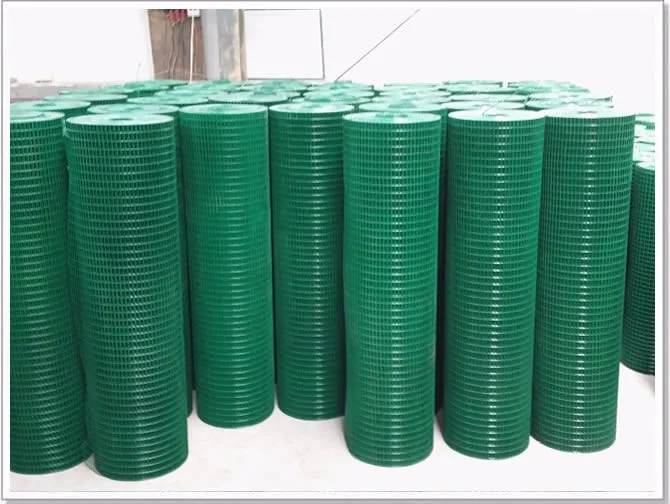

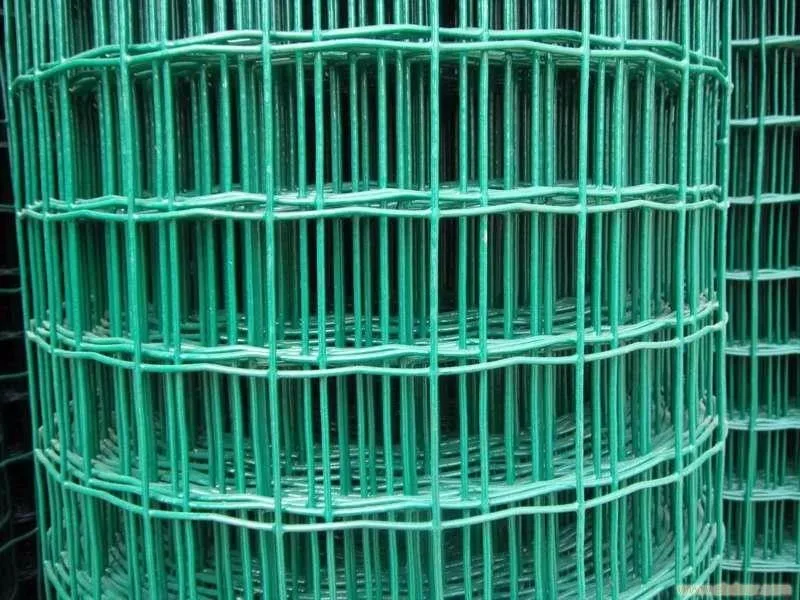

PVC coated welded mesh

PVC coated welded mesh with plastic covering is constructed with galvanized iron wire of high quality. It has PVC powder covering that is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. It is used in fencing residential and official properties like gardens, parks, building etc. The PVC coated welded mesh which is available as both rolls and panels, is also available in different colors like white, black, green etc.men book.

Welded stainless steel mesh
This kind of welded mesh wire is basically used in industrial fencing purposes. It is made up of stainless steel that has high strength and integrity. This corrosion resistance meshed wire is long lasting and is widely used in transportation, agricultural, mining, entertainment and other service sectors.

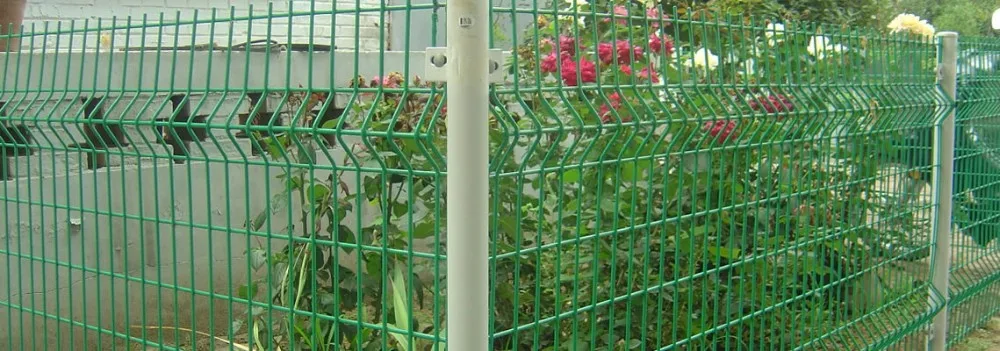

Welded wire fencing panels
This is a type of meshed wire that is available as panels and is basically used for fencing purposes. It is available with or without galvanization. The non-galvanized version comes for a lower cost.

Welded steel bar gratings
This type of welded mesh wire provides advantages like high strength, easy installation and feasible cost. It is mostly used for grating roads, making drainage coverings and building safety walls. It also has uses in chemical plantation, platform grating, metallurgy etc.

Packing & Delivery
Certifications
Company Information

     We MWN (Mesh Wire Netting Group Co., Limited) starts business from 2001, after several years operation and customers who from all over the world much support, we have developed and enlarged our production range over one hundred items.

     Wire Series:U staples,Florist wire,Straight cut wire,Loop tie wire,Mossing pegs,PVC coated wire,Barbed wire,Razor barbed wire...

     Mesh Netting Series:Golf net,Baseball net,Balanced Mesh Belt,Stainless steel rope net,Copper mesh,Perforated metal screen,Plain woven mesh,Wire Mesh Demister,Twill woven mesh,Safety net,Volleyball net,Bird netting,Football net...

     Till now, MWN has four factories in Hebei, one factory in Tianjin.They all have special technology and much work experience, making guarantee of the goods quality.
     "Focused on Customers" is our service tenet for years.
       Developing the best product, providing the best service, creating the best brand, to be MWN's enterprise mission.
